Multipass sketchy outline
A downloadable asset pack

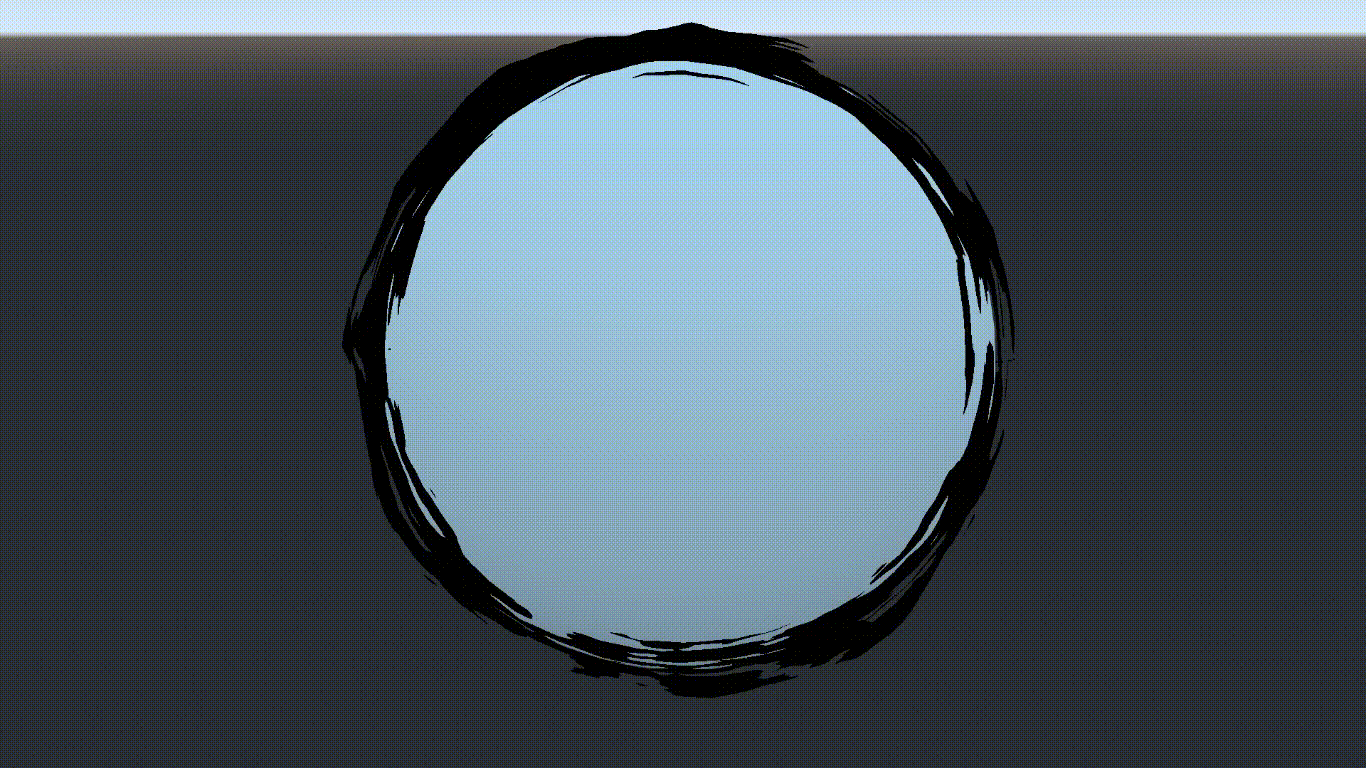

A sketchy outline material for Godot Engine.
Instructions:
- Unzip the files into your project folder
- Add the SketchyOutline.tres material as a second pass of your material
Warning: does not work well on hard surfaces and meshes with large flat areas.
Download
Download
multipass-sketchy-outline.zip 2.4 kB
Comments
Log in with itch.io to leave a comment.
Hey, I am trying to get this to work in Godot 4? Do you have any tips? Thanks so much!
It's probably a small change on some keywords in the shader (iirc matrices changed name)
I sorted it out!
Any chance you could share what you did?
/* Copyright 2021 Ilaria Cislaghi
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
*/
shader_type spatial; render_mode cull_front, unshaded;
uniform sampler2D outline_noise_tex; uniform vec4 outline_color; uniform float scissor_value = 0.5; uniform vec2 uv_scale = vec2(1.0); uniform sampler2D falloff_curve; uniform float outline_size = 0.1; uniform float offset_fres = 0.3; uniform float fps = 5.0;
varying float h;
void vertex(){ VERTEX += NORMAL * outline_size * texture(outline_noise_tex, UV).r; h = (MODEL_MATRIX * vec4(VERTEX, 1.0)).y; }
void fragment(){ float fres = abs(dot(normalize(-NORMAL), normalize(VERTEX))); vec3 nor = normalize(NORMAL); float angle = atan(nor.y, nor.x); angle /= 3.14;
float fres_remap = texture(falloff_curve, vec2(1.0 – fres)).r + offset_fres; ALPHA = texture(outline_noise_tex, vec2(angle * uv_scale.x + SCREEN_UV.x, nor.z * uv_scale.y + floor(TIME * fps)/fps)).r * fres_remap; ALBEDO = outline_color.rgb; ALPHA_SCISSOR_THRESHOLD = scissor_value; }
